Cross-hatch ruler bar system

Cross-hatch ruler bar system


The Crosshatch Ruler System can be added to any Innova frame for quilters that perform ruler work. This unique system replaces the dead bar with a slotted guide rail. The crosshatch ruler attaches to this slotted guide rail and allows the quilter to freely adjust the angle and position of the ruler for easy sew head guidance.

With this unique device the operator no longer has to struggle to keep their ruler stationary while guiding the longarm machine.

It holds the back end of the ruler in position, set at the proper angle, and gives the quilter freedom to guide the sewing head.

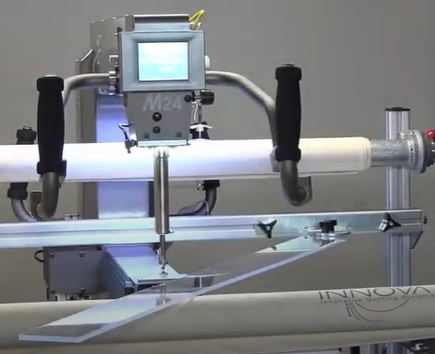

To see a video of this ruler bar being used on an Innova M24 machine, click here:

The ruler bar system is available in our store:
